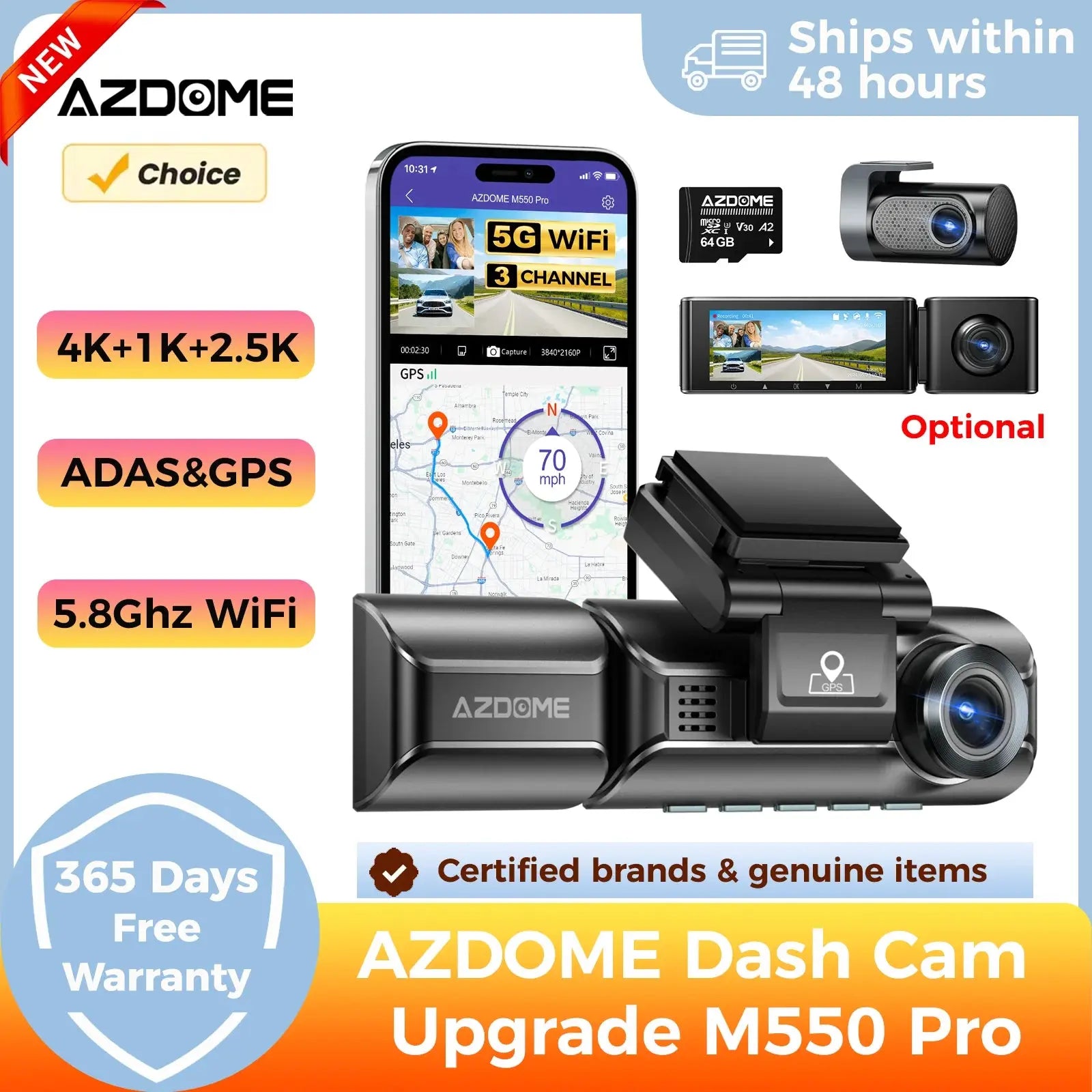

AZDOME M550 Pro 3-Channel 4K Dash Cam

Triple Recording • GPS & 5.8GHz Wi-Fi • Super Capacitor • 24H Parking Mode

Product Description

Achieve complete cabin and road coverage with the AZDOME M550 Pro 3-Channel Dash Cam. This advanced system records in 4K UHD (front), 2.5K (cabin/interior), and 1080p (rear), offering triple‑angle protection. Built‑in GPS, 5.8GHz Wi-Fi, a super capacitor for extreme temperatures, and optional 24‑hour parking monitoring make it a robust, feature‑rich choice for drivers who demand maximum visibility and reliability.

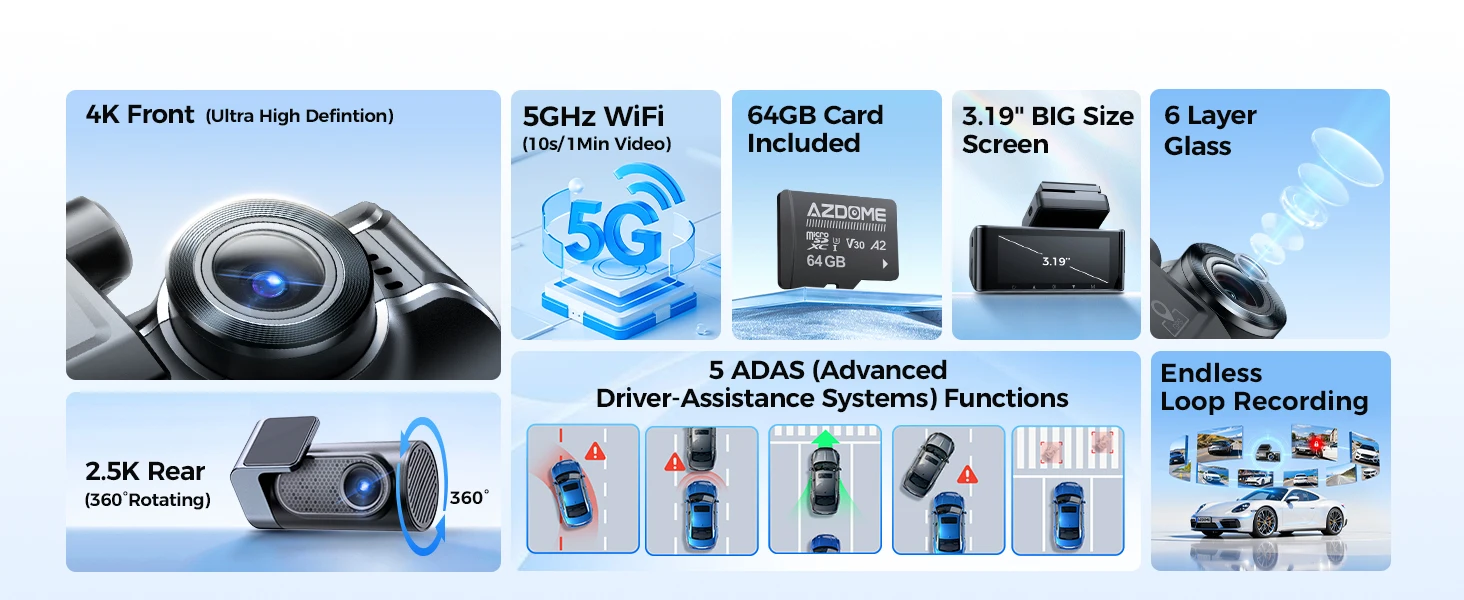

Key Features

• Triple‑Channel 4K + 2.5K + 1080p Recording
  Front: 4K UHD (3840x2160) @30fps | Cabin: 2.5K @25fps | Rear: 1080p @25fps — full interior and exterior coverage.
• Built‑in GPS & 5.8GHz High‑Speed Wi-Fi

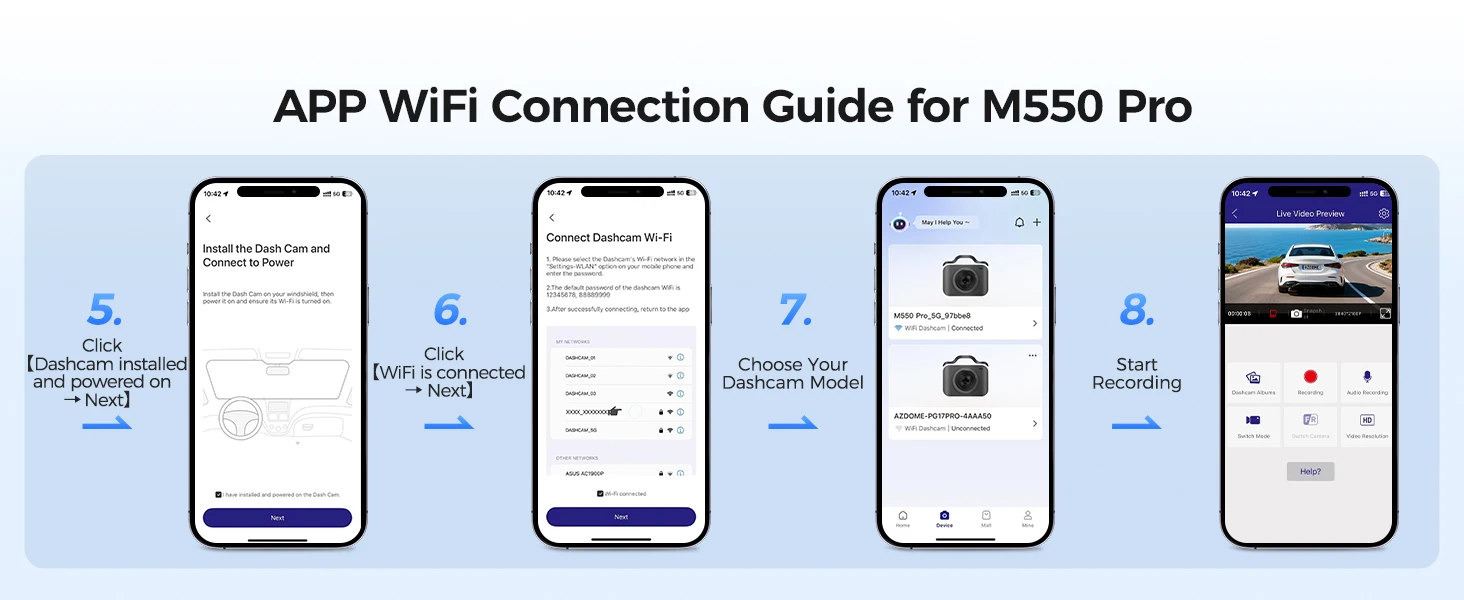

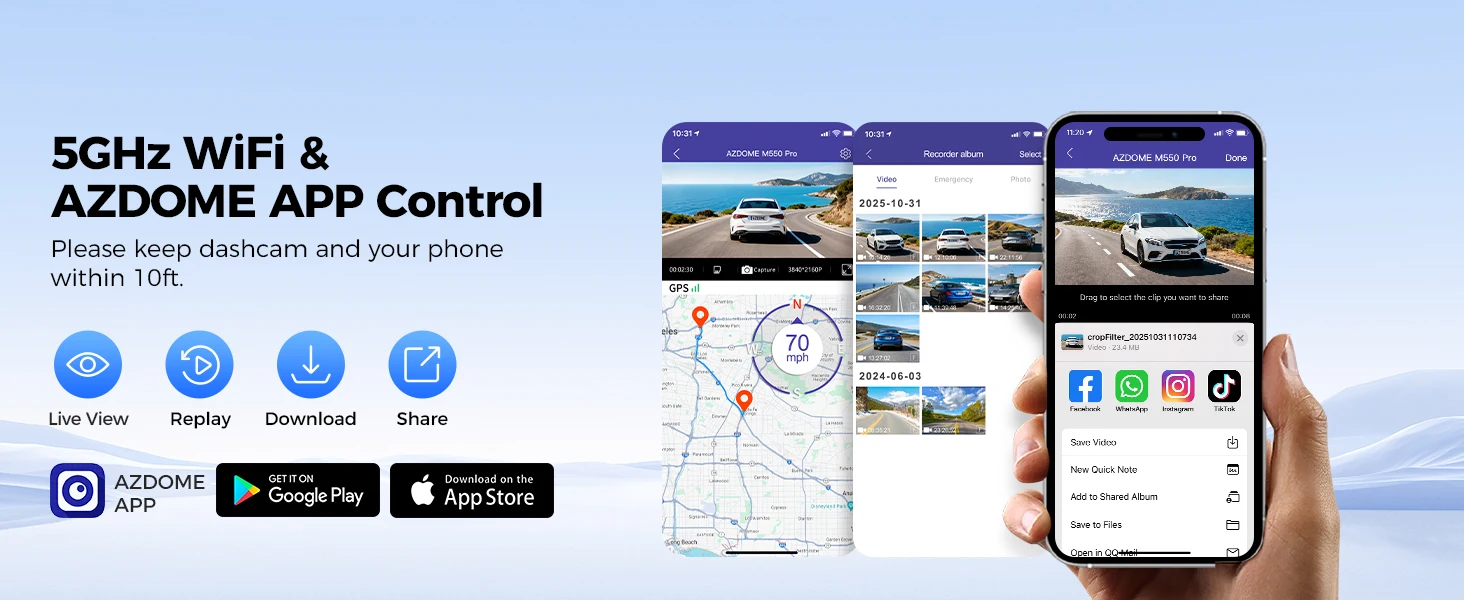

  GPS logs speed/coordinates; 5.8GHz Wi-Fi enables fast app connectivity for live view, playback, and settings adjustment.
• Super Capacitor for Extreme Temperatures
  Replaces batteries with a heat‑resistant super capacitor, ensuring stable operation from ‑20°C to 70°C.
• 24‑Hour Parking Mode with G‑Sensor
  Optional hardwire kit enables continuous surveillance; G‑sensor auto‑locks footage upon collision or vibration.
• Wide Dynamic Range (WDR) & Night Vision
  WDR balances high‑contrast lighting; advanced night vision ensures clear footage in low‑light conditions.

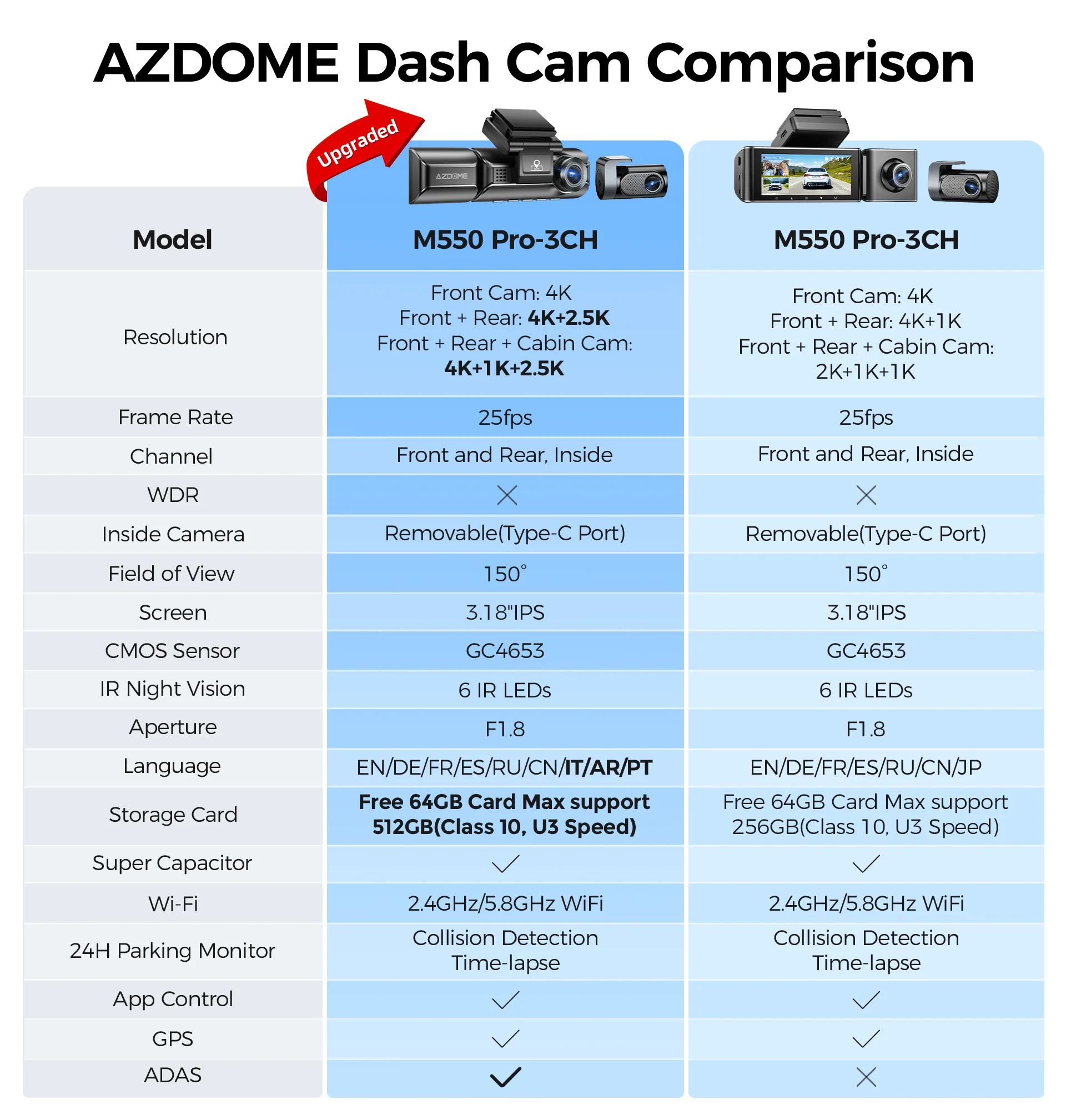

Technical Specifications

Chipset: Novatek
Image Sensor: GC4653
Resolution: Front 4K @30fps, Cabin 2.5K @25fps, Rear 1080p @25fps
Lens Angle: 150° wide‑angle (front)
Aperture: F1.8

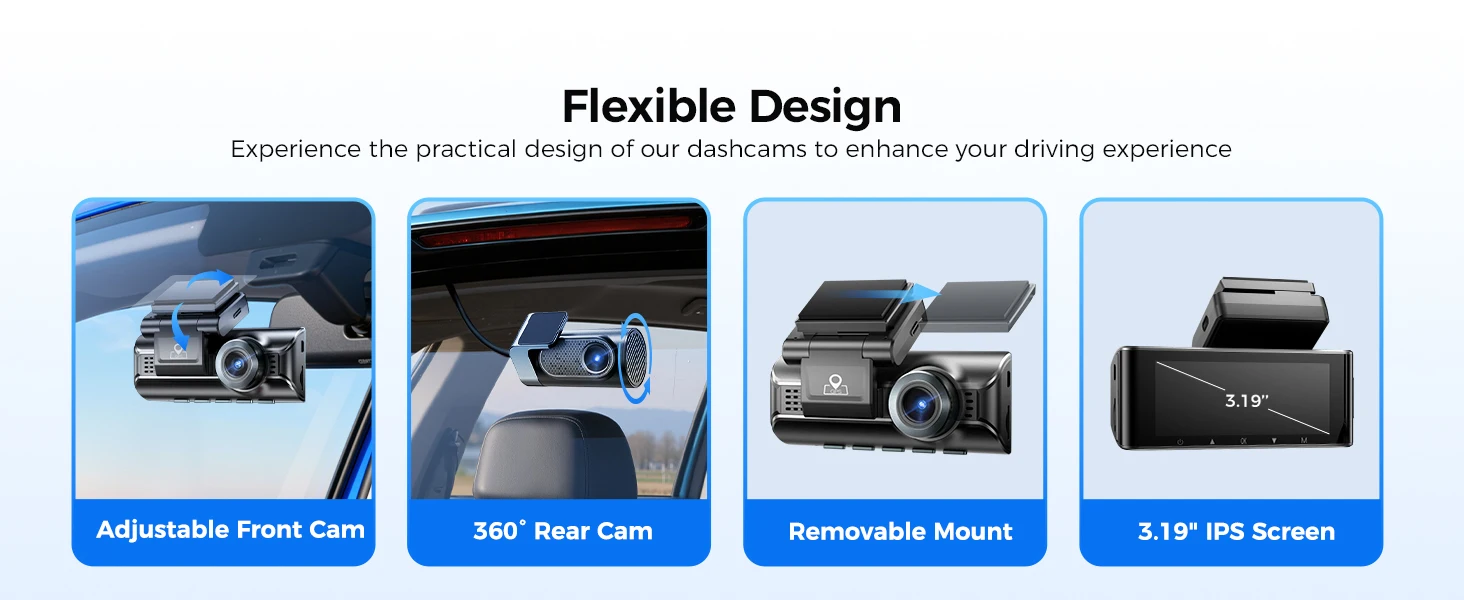

Display: 3‑5” IPS Screen
Storage: Includes 64GB Class 10 TF Card (supports up to 512GB)
Connectivity: 5.8GHz Wi-Fi, AV‑In, USB 2.0, Built‑in GPS

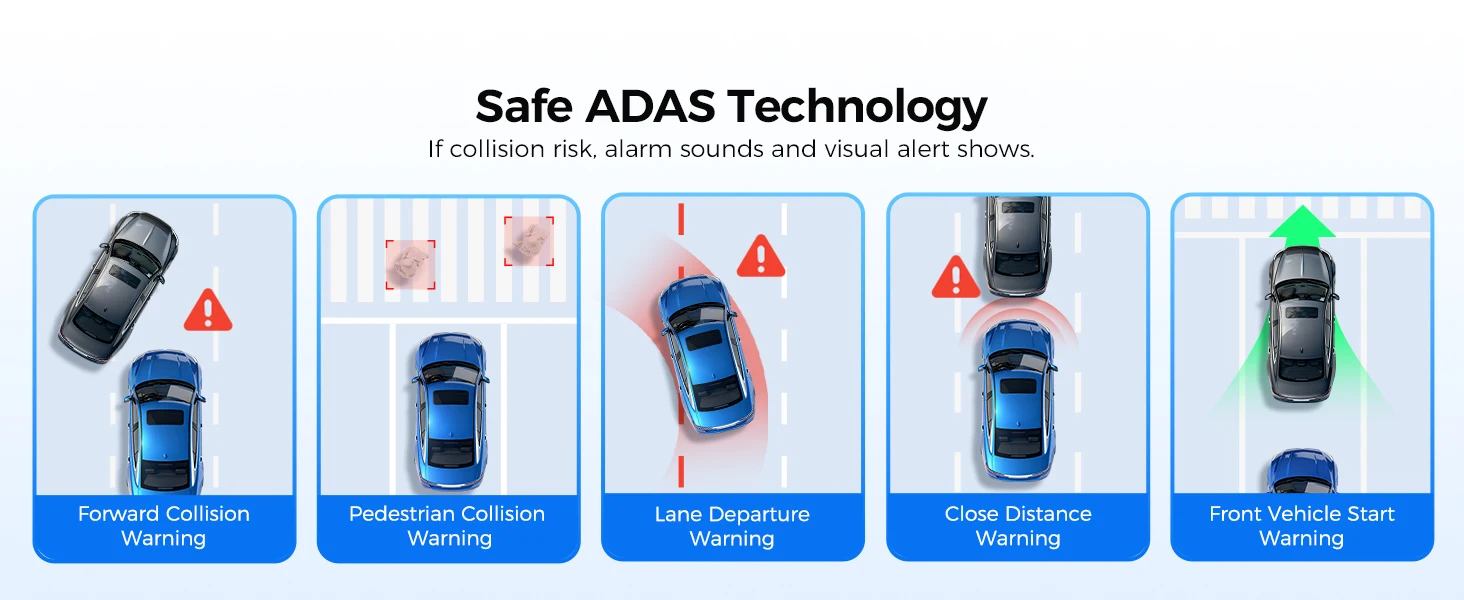

Features: G‑Sensor, Motion Detection, Loop Recording, Parking Mode, ADAS, Speed/Coordinate Logging
Power: 12V car adapter (hardwire kit optional for parking mode)
Operating Temperature: ‑20°C to 70°C
Certifications: CE, FCC, RoHS, WEEE
Warranty: 1 year

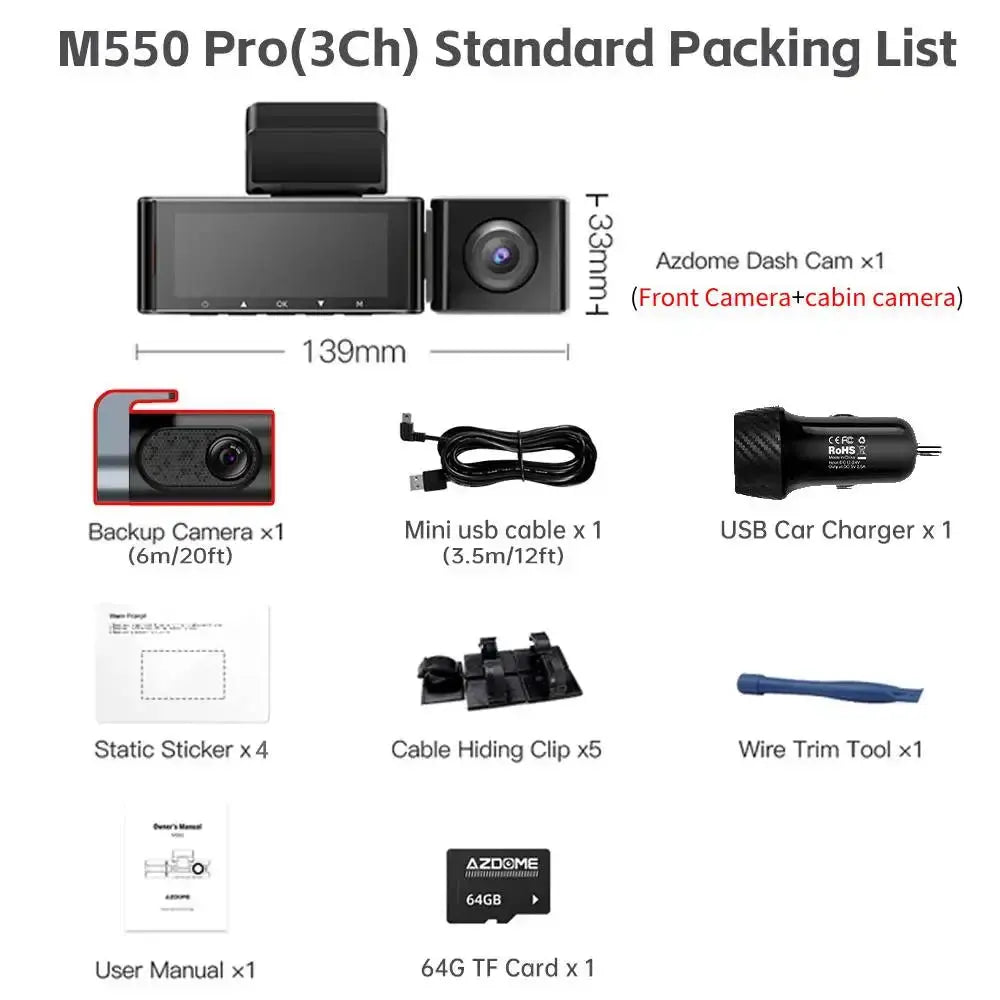

Package Includes

1 x M550 Pro Main Unit (Front Camera)
1 x Cabin Camera (2.5K)
1 x Rear Camera (1080p)
1 x 64GB TF Card
1 x Power Charger & Cables
1 x Mounting Accessories
Optional add‑on: Hardwire Kit (sold separately)

Ideal For

Rideshare, taxi, and fleet drivers
Families and travellers wanting interior + exterior monitoring
High‑security parking and 24/7 surveillance needs
Extreme climate regions (hot/cold)
Users seeking comprehensive evidence with GPS/Wi-Fi convenience

Note: Requires continuous power connection (not wireless). For 24‑hour parking monitoring, purchase the separate hardwire kit. Compatible with Class 10+ MicroSD cards up to 512GB.

AZDOME M550 Pro — Triple‑angle clarity. Built‑in intelligence. Drive with total coverage.

Make your driving safer with AZDOME Dash Cam M550 Pro

AZDOME M550 Pro dash cam new design with UHD 4K Record 5.8Ghz WiFi and GPS Tracking.

3 Channel Dash Cam for Car

1. Front: 4K (3840x2160P); 2. Front and rear: 4K+2.5K; 3. Front and inside: 4K (2560x1440P) +1080P; 4. Front and rear inside: 4K+1080P+2.5K.
